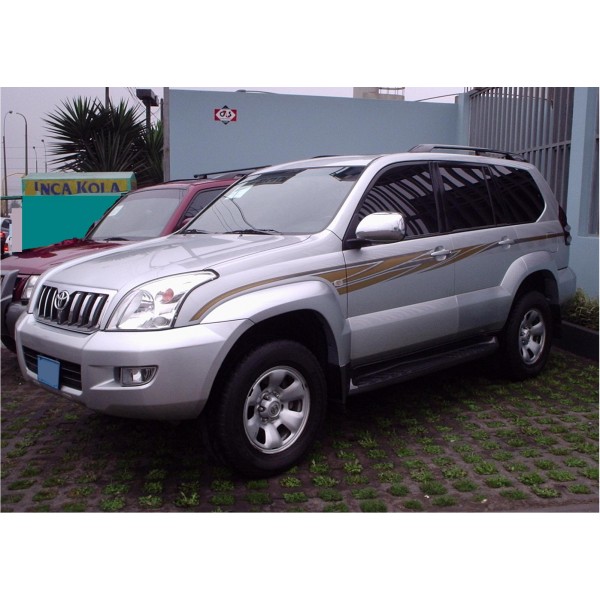

CD WIRING DIAGRAM LAND CRUISER & LAND CRUISER PRADO ปี 2004

Wiring Diagram Land Cruiser & Land Cruiser Prado ปี 2004 รหัสสินค้า TYE-040

เครื่องยนต์

1GR-FE

3RZ-FE

1KD-FTV

1KZ-TE

5L-E

เนื้อหาเป็น Wiring Diagram ทั้งคัน

เป็น CD จำนวน 1 แผ่น

รายการหัวข้อต่างๆ

Wiring Diagram

   - Power Source

   - Starting 1GR-FE, 3RZ-FE, Diesel,

   - Ignition 1GR-FE, 3RZ-FE

   - Charging Gasoline, 1KD-FTV, 1KZ-TE, 5L-E

   - Fuel Heater

   - Engine Control 1GR-FE, 3RZ-FE, 1KD-FTV, 1KZ-TE, 5L-E

   - Engine Immobiliser System 3RZ-FE

   - Multiplex Communication System

   - Headlight

   - Front & Rear Fog Light

   - Light Auto Turn Off

   - Turn Signal & Hazard Warning Light

   - Interiror Light

   - Taillight & IIIumination

   - Stop Light

   - Back-Up Light

   - Key Reminder & Seat Belt Warning

   - Headlight Beam Leve Control

   - Headlight Cleaner

   - Front & Rear Wiper & Washer

   - Power Window

   - Wireless Door Lock

   - Option Connecter (Wire Less Door Lock Control)

   - Door Lock Control & Theft Deterrent

   - Double Locking

   - ECT & A/T Indicator 1GR-FE, 3RZ-FE, 1KD-FTV, 1KZ-TE

   - Cruise Control 1GR-FE, 1KD-FTV, 1KZ-TE

   - VSC A/T, M/T

   - ABS

   - Active Height Control Suspension & Electric Modulated Air Suspension

   - Shift Lock

   - Center Differential Lock

   - Rear Differential Lock

   - 4WD

   - Moon Roof

   - Remote Control Mirror

   - Mirror Heater

   - Rear Window Defogger

   - Cigarette Lighter & Power Outlet

   - Horn

   - Power Seat

   - Seat Heater

   - Trailer Towing

   - Accessory Meter

   - Navigation System

   - Radio & Payer

   - Combination Meter

   - Condenser Fan

   - Viscous Heater

   - Air Conditioner

   - Cooler Box

   - Ground Point
